Progressive cavity pump spare parts
Jiuhong supplies (both original and generic) replacement progressive cavity pump spare parts such as rotors, stators, coupling rod, driving shaft, seals, and are suitable for many well-known popular brands PC pumps. We have enough stock to ship at any time.
What are the spare parts of progressive cavity pump?
- Progressive cavity pump stator
- Progressive cavity pump rotor
- Progressive cavity pump coupling rod
- Progressive cavity pump drive shaft
- Universal joint assembly of progressive cavity pump
-
Mechanical seal/Packing seal
Progressive cavity pump spare parts
Progressive cavity pump spare parts are essential components that ensure the proper functioning of progressive cavity pumps. These pumps are used in various industries, including food and beverage processing, oil and gas, and wastewater treatment plants. The progressive cavity pump spare parts can be categorized into several types based on their specific functions.
Stators
Stators are flexible, circular-shaped components that are placed inside the pump's housing. They are made of rubber or other elastomers and have a helical shape that interacts with the pump's rotor. Stators are responsible for producing the pumping action and creating the necessary pressure to move the fluid through the system.
Rotors
Rotors are the components that interact with the stator to produce the pumping action. They are typically made of chrome-plated stainless steel, and their helical shape matches the stator. The rotor rotates inside the stator, creating a continuous flow of fluid through the pump.
Seals
Seals are components that prevent fluid from leaking out of the pump. They are typically made of high-grade elastomers, and their design depends on the specific application of the pump. Seals can be replaced regularly to ensure proper sealing performance.
Couplings
Couplings are used to connect the pump to the motor that powers it. They are often made of stainless steel, and their primary function is to transmit torque from the motor to the pump. Couplings are available in various sizes, depending on the power requirements of the system.
Bearings
Bearings are components that support the rotating parts of the pump, such as the rotor and shaft. They are available in various sizes and designs, depending on the specific needs of the pump. Bearings can wear out over time and may need to be replaced periodically.
Hoppers and Feeders
Hoppers and feeders are components that are used in systems where the pump is used to move solids, such as in wastewater treatment plants. They are available in various sizes and designs and are typically made of stainless steel. Hoppers and feeders are responsible for feeding the solids into the pump, where they are mixed with the fluid and pumped through the system.
In conclusion, progressive cavity pump spare parts are essential components that ensure the efficient operation of the pump. They are available in various types and designs, depending on the specific needs of the pump system. Regular maintenance and replacement of these parts can help keep the pump running smoothly and prevent costly breakdowns.
The Stator of a Progressive Cavity Pump
The stator is mostly made of rubber. Because it needs to form a closed meshing cavity with the rotor, it is an interference fit with the rotor. When the rotor (main shaft) rotates and causes continuous friction, it will wear naturally.
The Rotor of a Progressive Cavity Pump
The Progressive cavity pump rotor (also known as the main shaft) is mostly made of stainless steel, and can be selectively plated with chrome;
Due to its meshing relationship with the characteristic geometry of the stator, in addition to natural wear, it is also whether the conveyed medium contains solid particles and corrosive.
The Coupling Rod of a Progressive Cavity Pump
The coupling rod connects the rotor and the drive shaft. When the motor is running, the drive shaft drives the coupling rod, and the coupling rod then drives the rotor to play a transmission role. Except for the drive shaft, these mechanical components are located in the suction chamber of the pump.
The Drive Shaft of a Progressive Cavity Pump
The drive shaft is generally connected to the drive end (reducer or various drive motors), and its wear is mostly caused by natural wear or changes in media working conditions.
Progressive cavity pump universal joint assembly
The Universal Joint Assembly a Progressive Cavity Pump
The universal joint assembly is located at both ends of the coupling rod. It successfully connects the rotor and the drive shaft to the coupling rod more stably and firmly; Since the universal joint assembly consists of a variety of small spare parts, we need to check its seal regularly And lubrication.
Progressive Cavity Pump Parts Material List

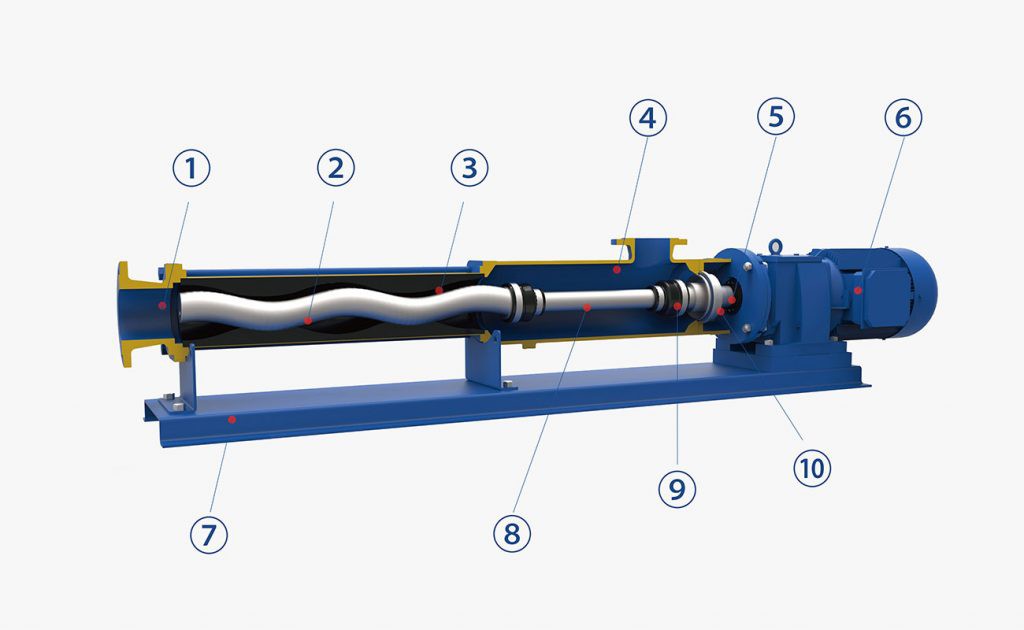

Progressive Cavity Pump Structure Diagram
|
No. |
Name |
Matiral |
|
1 |
Material-out chamber |
HT200, 1Cr18Ni9Ti, 304, 316L, 2205, Ti |
|
2 |
Rotor |
45#, 2Cr13, 304, 316L, 2205, Ti (Heat-treatable and electroplated Cr) |
|
3 |
Stator |
NR, NBR, Q, EPM, FKM |
|
4 |
Suction chamber |
HT200, 304, 316L, 2205, Ti |
|
5 |
Driving shaft |
45#, 2Cr13, 304, 316L, 2205, Ti (Heat-treatable and electroplated Cr) |
|
6 |
Gear motor |
/ |
|
7 |
Base plate |
45#, 2Cr13, 304, 316L, 2205, Ti |
|
8 |
Coupling rod |
45#, 2Cr13, 304, 316L, 2205, Ti (Heat-treatable and electroplated Cr) |
|
9 |
Universal joint assembly |
NBR + 45#, 2Cr13, 304, 316L |
|
10 |
Shaft sealing |
Customized according to media |
Progressive cavity pump parts material list
Netzsch® NM Series Spare Parts List
Pump identification no. N010844-NM031BY01P05B (For reference only)
|
Part no. |
Description |
Quantity |
Identification no. |
|
pin |
2 |
NLP8000068 |
|
|
hexagon. Nut |
2 |
NLP6007847 |
|
|
0085 |
drive stool |
1 |
5066509 |
|
0365 |
elbow |
1 |
520096 |
|
1020 |
name plate |
1 |
NLP8000314 |
|
1020 |
number plate |
1 |
892897 |
|
1030 |
pin |
1 |
5067630 |
|
1035 |
thrower |
1 |
NMP5066416 |
|
1050 |
connecting shaft |
1 |
NLP6002301 |
|
1998 |
coupling rod |
1 |
NLP6000534 |
|
1999 |
rotor |
1 |
5060244 |
|
2005 |
end socket |
1 |
955217 |
|
2010 |
pump housing |
1 |
NLP6011279 |
|
2015 |
drain plug |
3 |
NLP8000290 |
|
2016 |
drain plug |
1 |
NLP8000269 |
|
2020 |
bolt |
4 |
687463 |
|
2035 |
support |
1 |
955466 |
|
3005 |
stator |
1 |
5072602 |
|
3010 |
thru bolt |
4 |
955464 |
|
3015 |
spring washer |
8 |
502014 |
|
3070 |
washer |
4 |
502002 |
|
5065 |
circlip |
2 |
512277 |
|
5115 |
sleeve |
2 |
861394 |
|
5425 |
clamp ring |
2 |
NLP8000448 |
|
7015 |
stuffing box housing |
1 |
NLP6001432 |
|
7030 |
bolt |
2 |
NLP8000387 |
|
7040 |
packing |
6 |
691464 |
|
8010 |
gasket |
3 |
422526 |
|
8012 |
gasket |
1 |
422527 |
|
8015 |
O-ring |
1 |
516326 |
|
8060 |
O-ring |
4 |
516955 |
|
8235 |
SM-pin joint seal |
2 |
878237 |
|
9510 |
helical geared motors |
1 |
RC06900 |
Netzsch® NM series spare parts list
Aftermarket Seepex® Progressive Cavity Pumps and Pump Parts
We offer Sepeex ® Brand BN series and MD series replacement aftermarket progressing cavity pumps parts and pumps. Including stator, rotor, coupling rod, universal joint assembly, drive shaft, mechanical seal, mechanical seal casing, packing, packing chamber and pump body, almost all can be provided, except for special pump types.
Index Of BN Series Spare Parts And Recommended Spare/reserve Parts
05-24, 1-6, 1-12, 2-6L…202-6L
|
Part No. |
Description |
Quantity |
|
200 |
lantern |
1 |
|
202 |
round head grooved pins |
2 |
|
203 |
type plate |
1 |
|
210 |
hexagon bolt |
4 |
|
211 |
hexagon bolt |
|
|
212 |
spring washer |
4 |
|
213 |
hexagon nut |
4 |
|
307 |
plug-in shaft |
1 |
|
309 |
plug-in shaft pin |
1 |
|
310 |
splash ring |
1 |
|
400 |
coupling rod |
1 |
|
401 |
retaining sleeve |
2 |
|
402 |
coupling rod pin |
2 |
|
403 |
guide bushing |
4 |
|
404 |
coupling rod bushing |
2 |
|
405 |
universal joint sleeve |
2 |
|
406 |
holding band |
2 |
|
407 |
holding band |
2 |
|
500 |
suction casing |
1 |
|
501 |
casing gasket |
1 |
|
502 |
screwed plug |
3 |
|
503 |
sealing ring |
3 |
|
506 |
hexagon bolt |
4 |
|
507 |
fan type lock washer |
4 |
|
509 |
hexagon nut |
4 |
|
°) 510 |
cleanout |
2 |
|
°) 511 |
gasket |
2 |
|
°) 512 |
hexagon bolt |
8 |
|
°) 516 |
screwed plug |
2 |
|
°) 517 |
sealing ring |
2 |
|
600 |
rotor |
1 |
|
601 |
stator |
1 |
|
602 |
tie bolt |
2 |
|
603 |
tie bolt |
2 |
|
604 |
hexagon nut |
8 |
|
606 |
washer |
8 |
|
607 |
trestle |
1 |
|
700 |
pressure branch |
1 |
|
705 |
screwed plug |
1 |
|
706 |
sealing ring |
1 |
|
098 |
seepex joint grease |
Table of BN series spare parts and recommended spare/reserve parts
Aftermarket Mono® Progressive Cavity Pumps and Pump Parts
Sed mollis
We provide you with aftermarket pumps and progressive cavity pump spare parts for the following Mono® Pump Models.
- Mono® D Series Pumps*
- Mono® H Series Pumps*
- Mono® Merlin Pumps*
- Mono® E series Pumps*
- Mono® C Series Pumps*
-
Mono® L Series Pumps*
Drawing Reference Numbers
C1XK AND ABOVE EXCLUDING 4 – STAGE MODELS
|
DRG. REF |
DESCRIPTION |
DRG. REF |
DESCRIPTION |
|
01A |
BODY-STD C.I. |
P201 |
TAPER PLUG |
|
10A |
MECHANICAL SEAL |
P202 |
TAPER PLUG |
|
15A |
THROWER GUARD |
P203 |
HEX. SOC. SETSCREW |
|
20B |
GASKET-GLAND |
||
|
22A |
STATOR-MTM NITRILE RUBBER |
P401 |
TORL SEAL RING |
|
23A |
SUCTION CHAMBER |
P402 |
TORL SEAL RING |
|
23B |
SUCT CHAMB EXTENSION |
P403 |
SPIRAL RET.RING |
|
24A |
END COVER |
P404 |
SPIRAL RET.RING |
|
25A |
ROTOR |
P405 |
TIE-SEALING COVER |
|
26A |
COUPLING ROD |
P406 |
TIE SEALING COVER |
|
28A |
SEALING COVER |
||
|
28B |
SEALING COVER |
P501 |
TAPER PLUG |
|
29A |
COUPLING ROD PIN |
P502 |
TAPER PLUG |
|
29B |
COUPLING ROD PIN |
P503 |
HEX. NUT |
|
29C |
SHAFT PIN |
P504 |
WASHER |
|
32A |
DRIVE SHAFT |
P505 |
SNGL. COIL SPR. WASHER |
|
42A |
THROWER |
P506 |
HEX. NUT |
|
62A |
SUPPORT FOOT |
P507 |
WASHER |
|
65A |
MECH SEAL CARRIER |
P508 |
SNGL. COIL SPR. WASHER |
|
66A |
ABUTMENT RING |
P509 |
TORL SEAL RING |
|
74A |
SLEEVE (ROTOR-SHAFT) |
P510 |
TORL SEAL RING |
|
74B |
SLEEVE (ROTOR-SHAFT) |
P519 |
TAPER PLUG |
|
95A |
TIE ROD |
P520 |
HEX. HD. BOLT |
|
P521 |
HEX. NUT |
||
|
P104 |
HEX. HD. BOLT |
P522 |
WASHER |
|
P105 |
HEX. NUT |
P523 |
SNGL. COIL SPR. WASHER |
|
P106 |
WASHER |
||
|
P107 |
SNGL. COIL SPR. WASHER |
P601 |
HEX HD BOLT |
|
P109 |
HEX NUT |
P602 |
SNGL. COIL SPR. WASHER |
|
P603 |
WASHER |
||
|
P604 |
HEX. NUT |
Drawing Reference Numbers List
Aftermarket Moyno® Progressive Cavity Pumps and Pump Parts
We provide you with aftermarket pumps and progressive cavity pump spare parts for the following Moyno® Pump Models.
- Moyno® 500 Series Pumps*
- Moyno® 1000 Series Pumps*
- Moyno® 2000 Series Pumps*
- Moyno® J-Series Pumps*
- Moyno® L-Frame Pumps – Our Most Popular!*
- Moyno® FF / FG / FFC / FGC & FFJ Sanitary Pumps*
Index Of Spare Parts And Recommended Spare/reserve Parts
|
REF. DESCRIPTION |
TYPE |
A2A PART NO. |
A1B PART NO. |
A2B PART NO. |
A1C PART NO. |
A2C PART NO. |
|
0100 BEARING HOUSING |
CD/SS |
CC A2A0110 |
CC A2A0110 |
CC A2A0110 |
CC A2A0110 |
CC A2A0110 |
|
0900 PACKING GLAND |
CD/SS |
SC A2A0910 |
SC A2A0910 |
SC A2A0910 |
SC A2A0910 |
SC A2A0910 |
|
1000 STUFFING BOX |
CD SS |
CC A2A1010 SC A2A1010 |
CC A2A1010 SC A2A1010 |
CC A2A1010 SC A2A1010 |
CC A2A1010 SC A2A1010 |
CC A2A1010 SC A2A1010 |
|
1000 SEAL * HOUSING ** |
CD/SS CD/SS |
SC A2A1011 4240833007 |
SC A2A1011 4240833007 |
SC A2A1011 4240833007 |
SC A2A1011 4240833007 |
SC A2A1011 4240833007 |
|
1100 SUCTION CHAMBER |
CD SS |
CC A2A1110 SC A2A1110 |
CC A1B1110 SC A1B1110 |
CC A1B1110 SC A1B1110 |
CC A1C1110 SC A1C1110 |
CC A1C1110 SC A1C1110 |
|
1200 STATOR GASKET |
Q/R F B |
GG A2A1200 GF A2A1200 GB A2A1200 |
GG A1B1200 GF A1B1200 GB A1B1200 |
GG A1B1200 GF A1B1200 GB A1B1200 |
GG A1C1200 GF A1C1200 GB A1C1200 |
GG A1C1200 GF A1C1200 GB A1C1200 |
|
1220 SUCTION CHAM. GASKET |
Q/R F B |
GG A2A1220 GF A2A1220 GB A2A1220 |
GG A2A1220 GF A2A1220 GB A2A1220 |
GG A2A1220 GF A2A1220 GB A2A1220 |
GG A2A1220 GF A2A1220 GB A2A1220 |
GG A2A1220 GF A2A1220 GB A2A1220 |
|
1400 DISCHARGE FLANGE |
CD SS |
MS A2A1410 SS A2A1410 |
MS A1B1410 SS A1B1410 |
MS A1B1410 SS A1B1410 |
MS A1C1410 SS A1C1410 |
MS A1C1410 SS A1C1410 |
|
1700 STATOR SUPPORT |
CD/SS |
MS A2A1710 |
MS A2A1710 |
MS A2A1710 |
MS A1C1710 |
MS A1C1710 |
|
1800 CLAMP RING |
CD/SS |
MS A2A1810 |
MS A1B1810 |
MS A1B1810 |
MS A1C1810 |
MS A1C1810 |
|
2000 SHAFT PIN |
CD/SS |
4220487017 |
4220487017 |
4220487017 |
4220487017 |
4220487017 |
|
2100 INTERMEDIATE SHAFT |
CD SS |
4250392001 4250392017 |
4250392001 4250392017 |
4250392001 4250392017 |
4250393001 4250393017 |
4250393001 4250393017 |
|
2200 SEAL RING |
Q/R F B |
3207902206 3207905206 3207904206 |
3207902206 3207905206 3207904206 |
3207902206 3207905206 3207904206 |
3207902206 3207905206 3207904206 |
3207902206 3207905206 3207904206 |
|
5000 ROTOR |
CD SS |
TS A2A5000 SS A2A5000 |
TS A1B5000 SS A1B5000 |
TS A2B5000 SS A2B5000 |
TS A1C5000 SS A1C5000 |
TS A2C5000 SS A2C5000 |
|
6000 DRIVE SHAFT |
CD SS |
AS A2A6000 SS A2A6000 |
AS A2A6000 SS A2A6000 |
AS A2A6000 SS A2A6000 |
AS A1C6000 SS A1C6000 |
AS A1C6000 SS A1C6000 |
|
6000 DRIVE SHAFT (2-PIECE OPTION) |
CD SS |
4250378001 4250378017 |
4250378001 4250378017 |
4250378001 4250378017 |
4250378001 4250378015 |
4250378001 4250378015 |
|
6100 RETAINING RING |
CD/SS |
ST A2A6100 |
ST A2A6100 |
ST A2A6100 |
ST A1C6100 |
ST A1C6100 |
|
6200 CONNECTING ROD |
CD/SS |
AS A2A6200 |
AS A2A6200 |
AS A2A6200 |
AS A1C6200 |
AS A1C6200 |
|
6300 DRIVE PIN |
CD/SS |
TR A2A6300 |
TR A2A6300 |
TR A2A6300 |
TR A1C6300 |
TR A1C6300 |
|
6400 JOINT SEAL |
Q/R F/B |
RD A2A6400 RF A2A6400 |
RD A2A6400 RF A2A6400 |
RD A2A6400 RF A2A6400 |
RD A1C6400 RF A1C6400 |
RD A1C6400 RF A1C6400 |
|
6500 STATOR |
Q R F B |
RQ A2A6510 RR A2A6510 RF A2A6510 RB A2A6510 |
RQ A1B6510 RR A1B6510 RF A1B6510 RB A1B6510 |
RQ A2B6510 RR A2B6510 RF A2B6510 RB A2B6510 |
RQ A1C6510 RR A1C6510 RF A1C6510 RB A1C6510 |
RQ A2C6510 RR A2C6510 RF A2C6510 RB A2C6510 |
|
6800 SLINGER RING |
CD/SS |
RZ A2A6800 |
RZ A2A6800 |
RZ A2A6800 |
RZ A2A6800 |
RZ A2A6800 |
|
6800 SLINGER/PIN RETNR (2-PIECE OPTION) |
CD/SS |
423052800 |
423052800 |
423052800 |
423052800 |
423052800 |
|
6850 LANTERN RING |
CD/SS |
GR A2A6850 |
GR A2A6850 |
GR A2A6850 |
GR A2A6850 |
GR A2A6850 |
|
6900 PACKING |
STD. PTFE |
PC A2A6901 3403655001 |
PC A2A6901 3403655001 |
PC A2A6901 3403655001 |
PC A2A6901 3403655001 |
PC A2A6901 3403655001 |
|
7000 NAME PLATE |
CD/SS |
GA A2A7000 |
GA A2A7000 |
GA A2A7000 |
GA A2A7000 |
GA A2A7000 |
|
K O-RING |
Q/R F/B |
CA137 CF137 |
CA137 CF137 |
CA137 CF137 |
CA141 CF141 |
CA141 CF141 |
|
J SNAP RING |
CD SS |
EB007 EB507 |
EB007 EB507 |
EB007 EB507 |
EB015 EB015 |
EB015 EB015 |
|
R STATOR RING |
CD/SS |
EC022 |
EC028 |
EC028 |
EC034 |
EC034 |
PARTS LISTS
*Friction Driven Seal, Type 43 Or Equal
**Positive Drive Seal, Type 680 Or Equal
NOTE: Contact Factory For Replacement Mechanical Seal Part Numbers
Aftermarket Allweiler® Progressive Cavity Pumps and Pump Parts
Although Allweiler pump has a tailored code, we can provide most spare parts.
- Allweiler® SEP Series Pumps*
- Allweiler® SNP Series Pumps*
- Allweiler® AE Series Pumps*
-
Allweiler® TecFlow Series Pumps*
Index Of Spare Parts And Recommended Spare/reserve Parts
Series AEB.E, AEB.N, AEB.H, AEB.L, AEDB.E, AEDB.N Design IE
|
Part no. |
Description |
Recommended spare parts: |
Quantity |
Mark |
|
122 |
Motor bracket |
1 |
||
|
123 |
Clamp set |
1 |
||
|
125 |
Hollow shaft |
R |
1 |
|
|
201 |
T-head bolt |
2 |
||
|
202 |
Self locking nut |
2 |
||
|
203 |
Gland |
1 |
||
|
204 |
Gland housing |
1 |
||
|
207 |
Gland packing |
R, r |
① |
|
|
208 |
Flushing ring |
1 |
||
|
209 |
Lantern ring |
1 |
||
|
212 |
Screw plug |
1 |
||
|
213 |
Sealing tape |
1 |
||
|
214 |
Mechanical seal housing |
1 |
||
|
215 |
Mechanical seal cover |
1 |
||
|
218 |
O-ring |
R |
1 |
|
|
219 |
Mechanical seal |
R |
1 |
|
|
220 |
Retaining pin |
1 |
||
|
232 |
Shaft seal ring |
R |
1 |
|
|
234 |
Throttle ring |
R |
1 |
|
|
235 |
O-ring |
R |
1 |
|
|
236 |
Retaining pin |
R |
2 |
|
|
245 |
Hexagon head bolt |
3 |
||
|
251 |
Sealing agent |
1 |
||
|
301 |
Coupling rod pin |
R, r |
2 |
|
|
302 |
Coupling rod bush |
R, r |
2 |
⑤ |
|
303 |
Guide bush |
R, r |
4 |
|
|
304 |
Retaining sleeve |
R, r |
2 |
|
|
305 |
Joint oil |
R, r |
① |
|
|
306 |
Clamping band |
R, r |
4 |
|
|
307 |
Coupling rod |
R, r |
1 |
|
|
308 |
Cover sleeve |
R, r |
2 |
|
|
401 |
Rotor |
R, r |
1 |
|
|
402 |
Stator |
R, r |
1 |
|
|
403 |
Stator gasket, discharge side |
R, r |
1 |
|
|
404 |
Stator gasket, suction side |
R, r |
1 |
|
|
501 |
Suction casing gasket |
R, r |
1 |
|
|
502 |
Screw plug |
1 |
||
|
503 |
Seal ring |
R |
1 |
③ |
|
504 |
Discharge casing |
1 |
③ |
|
|
505 |
Suction casing |
1 |
||
|
506 |
Suction casing cover |
2 |
||
|
507 |
Gasket |
R |
2 |
|
|
508 |
Stud |
8 |
||
|
509 |
Nut |
8 |
||
|
512 |
Reducing flange |
1 |
||
|
513 |
O-ring |
R |
1 |
|
|
525 |
Washer |
8 |
||
|
601 |
Name plate |
1 |
||
|
602 |
Dome headed groove pin |
4 |
||
|
603 |
Commissioning label |
1 |
||
|
604 |
Suction label |
1 |
||
|
605 |
Discharge label |
1 |
||
|
606 |
Hexagon head bolt |
4 |
||
|
607 |
Hexagon nut |
4 |
||
|
608 |
Serrated lock washer |
4 |
||
|
609 |
Hexagon nut |
4 |
||
|
610 |
Washer |
4 |
||
|
611 |
Connecting bolt |
4 |
||
|
612 |
Stay |
1 |
② |
|
|
613 |
Hexagon nut |
2 |
④ |
Table of spare parts and recommended spare
Recommended Spare Parts
R = large repair kit
r = small repair kit
① See Section 7.1.2.4
② 2 pieces for AEB4H 100-IE, AEB4H 200-IE
③ 2 pieces for connection piece positions 2 and 4
④ 4 pieces for AEB4H 100-IE, AEB4H 200-IE
⑤ not required for AEB1E 50 / AEB2E 50 / AEB1N 25 / AEB2N 25 / AEDB1E 75 / AEDB2N 38 / AEB1L 99 / AEB4H 12)
Aftermarket PCM® Progressive Cavity Pumps and Pump Parts
We offer PCM ® Brand I series, ID series and H series replacement aftermarket progressing cavity pumps parts and pumps. Including stator, rotor, coupling rod, universal joint assembly, drive shaft, mechanical seal, mechanical seal casing, packing, packing chamber and pump body, almost all can be provided, except for special pump types.
Parts Of Lists
011M6F, 075M6F, 1M6F, 2M6F, 3M6F
|
Part no. |
Description |
Quantity |
|
1 |
STATOR |
1 |
|
11 |
PIN |
1 |
|
13 |
SEAL |
1 |
|
16/17 |
GASKET |
1 |
|
20 |
ROTOR |
1 |
|
34 |
SHAFT RING |
1 |
|
36 |
CTRL SHAFT |
1 |
|
50 |
BODY |
1 |
|
54 |
PORT |
1 |
|
57 |
MS SUPPORT |
1 |
|
88 |
SPACER |
1 |
|
90 |
SEAL |
2 |
|
102 |
WASHER |
4 |
|
102A |
WASHER |
4 |
|
104 |
SCREW |
4 |
|
104A |
SCREW |
4 |
|
107 |
NUT |
8 |
|
110 |
PLUG |
1 |
|
110A |
PLUG |
1 |
|
111 |
PLUG SEAL |
1 |
|
227 |
WASHER |
4 |
|
242 |
WASHER |
2 |
|
250 |
SCREW |
4 |
List of PCM spare parts
Hot Tags: progressive cavity pump spare parts, China progressive cavity pump spare parts manufacturers, factory, Constant Temperature Progressive Cavity Pump, Food Grade Progressive Cavity Pump, Online Cleaning Progressive Cavity Pump, Progressive Cavity Pump Spare Parts, Single Progressive Cavity Pump, Submerged Progressive Cavity Pump
